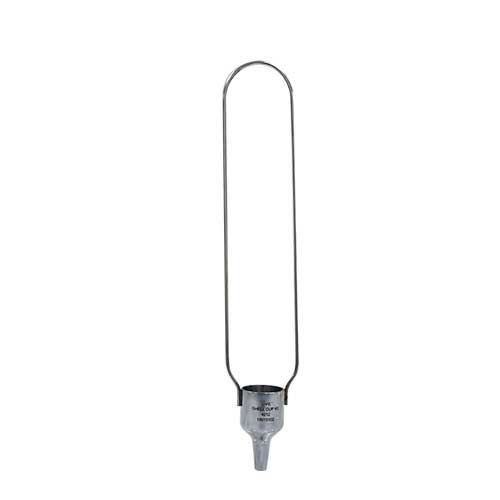

ASTM D4212 SHELL Viscosity Flow Cups

ASTM D4212 SHELL Viscosity Flow Cups for accurate fluid viscosity measurement. Available in hole sizes from 1.8 mm to 5.8 mm, covering viscosities from 2 cst to 1300 cst. Ideal for paints, coatings, and laboratory applications.

The ASTM D4212 SHELL Viscosity Flow Cups are designed according to the ASTM D4212 standard for precise viscosity measurement of low to medium viscosity liquids, particularly useful for paints, coatings, varnishes, and other similar materials. These cups are ideal for evaluating the flow time of fluids through a standardized orifice, which is then used to calculate the viscosity.

With a range of hole diameters from 1.8 mm to 5.8 mm, these cups cover viscosity values from 2 cst to 1300 cst, offering flexibility for a wide range of fluid types. The flow time of the fluid through the orifice is recorded, typically ranging from 20 to 80 seconds, and the viscosity is determined from this data.

The SHELL Viscosity Flow Cups are essential for use in laboratories and quality control for industries like coatings, inks, and other fluid-based materials. Their accuracy and conformance to ASTM standards make them a trusted choice for viscosity measurement.

Technical Specifications:

Order Code	Standard	Type	Hole Diameter	Viscosity Range	Flow Time
V90018	ASTM D4212	SHELL	1.8 mm	2-20 cst	20-80 sec
V90024	ASTM D4212	SHELL	2.4 mm	10-50 cst	20-80 sec
V90027	ASTM D4212	SHELL	2.7 mm	20-80 cst	20-80 sec
V90031	ASTM D4212	SHELL	3.1 mm	30-120 cst	20-80 sec
V90035	ASTM D4212	SHELL	3.5 mm	40-170 cst	20-80 sec
V90038	ASTM D4212	SHELL	3.8 mm	70-270 cst	20-80 sec
V90046	ASTM D4212	SHELL	4.6 mm	125-520 cst	20-80 sec
V90058	ASTM D4212	SHELL	5.8 mm	320-1300 cst	20-80 sec
