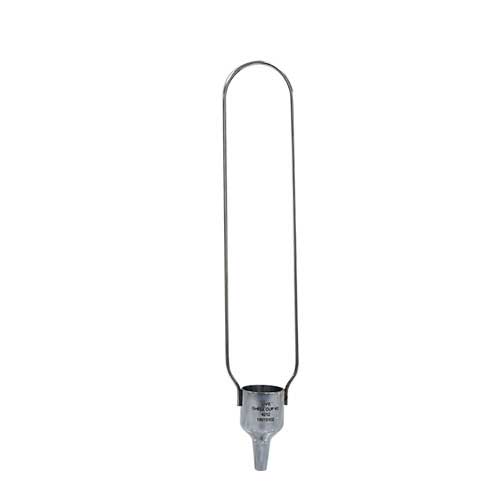

ASTM D4212 ZAHN Viscosity Cup
ASTM D4212 ZAHN Viscosity Flow Cups for precise fluid viscosity measurement. Available in hole sizes from 2.0 mm to 5.3 mm, covering viscosities from 5 cst to 1840 cst. Perfect for paints, coatings, and fluid testing.
The ASTM D4212 ZAHN Viscosity Cup is designed according to the ASTM D4212 standard for measuring the viscosity of paints, coatings, varnishes, and other similar fluid materials. This cup provides accurate and consistent measurements by timing how long a liquid takes to flow through an orifice of standardized size.
With hole diameters ranging from 2.0 mm to 5.3 mm, the ZAHN Viscosity Cup is capable of measuring fluids with viscosities from 5 cst to 1840 cst. The flow time of the fluid, typically ranging between 20 to 80 seconds, allows for precise viscosity calculations. These cups are widely used in laboratories and industrial environments for quality control and fluid testing, ensuring that the materials meet the required viscosity standards.
Technical Specifications:
| Order Code | Standard | Type | Hole Diameter | Viscosity Range | Flow Time |
|---|---|---|---|---|---|
| V80020 | ASTM D4212 | ZAHN | 2.0 mm | 5-60 cst | 20-80 sec |
| V80027 | ASTM D4212 | ZAHN | 2.7 mm | 20-230 cst | 20-80 sec |
| V80038 | ASTM D4212 | ZAHN | 3.8 mm | 150-850 cst | 20-80 sec |
| V80043 | ASTM D4212 | ZAHN | 4.3 mm | 220-1100 cst | 20-80 sec |
| V80053 | ASTM D4212 | ZAHN | 5.3 mm | 460-1840 cst | 20-80 sec |
