Hydraulic Force Calibration Machines

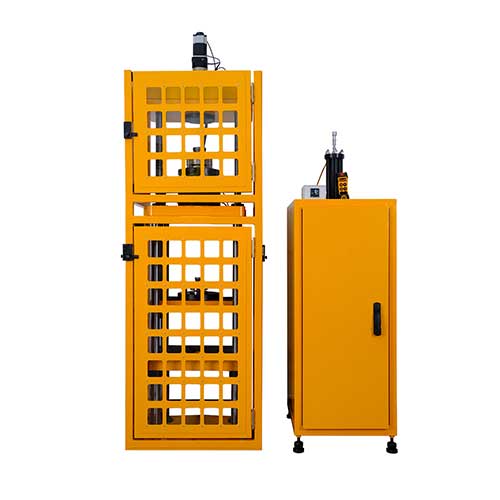

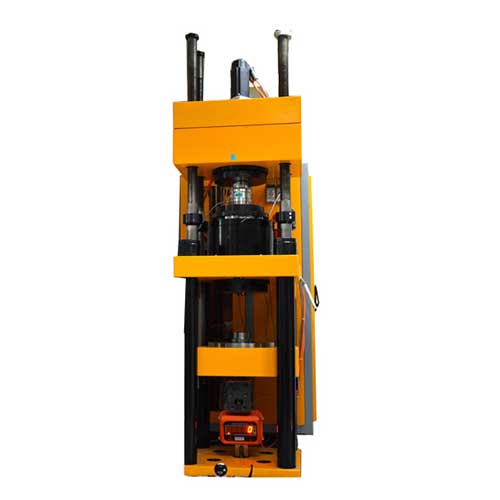

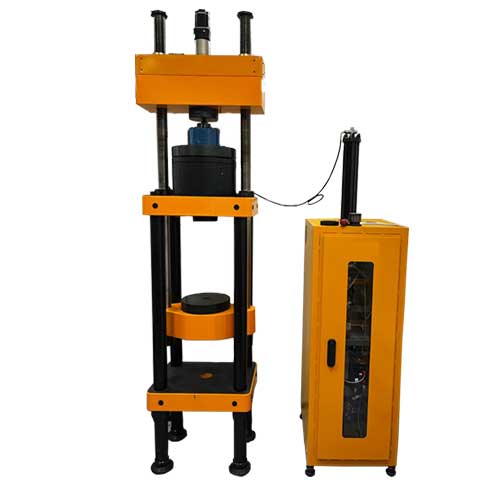

Hydraulic Force Calibration Machines are advanced systems designed for precise calibration of force measuring devices such as load cells, dynamometers, crane scales, and force rings. These machines can be operated either manually or automatically, offering exceptional accuracy and compliance with international standards (ASTM E74, ISO 376, DKD-R 3-3). The system consists of the machine body, dual hydraulic pistons, automation panel, proprietary software, computer, and connection components.

Key Features and Advantages:

• Automated Data Recording: The system automatically collects and records data, eliminating the need for manual entry during calibration.
• Operator-Free Calibration: Operators are not required to monitor the machine during calibration, except for rotational test steps.
• Camera Integration: For devices without analog signal outputs or communication interfaces, instant data recording is facilitated through an integrated camera system.
• Historical Data Access: Previous calibration results can be retrieved from the software’s database.
• Excel Integration: Automatically maps data to preformatted Excel calibration templates, with support for custom templates.
• Fast Certificate Generation: Measurement data can be directly converted into calibration certificates.
• Advanced Signal Processing: Force conversion is directly calculated using a 3rd-degree polynomial equation, eliminating the need for external reference indicators.
• Customizable Procedures: Users can create and modify calibration procedures as needed, without manufacturer assistance.

Software Features:

• Enables both manual and automated operation.
• Automatically collects outputs from reference force measuring devices.
• Fully supports calibration procedures for ASTM E74, ISO 376, and DKD-R 3-3 standards.
• Allows operators to define new procedures for changing standards or methods.
• Saves data in Excel-compatible formats and displays real-time records.
• Eliminates operator-related errors through automated data logging.
• Communicates via Ethernet with the PC and appropriate ports with display units.

Technical Specifications:

These calibration machines ensure the highest precision and flexibility, making them indispensable tools for laboratories and industries requiring reliable force measurement.
