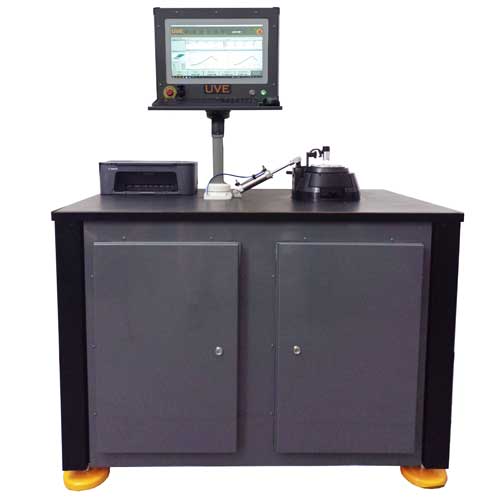

Sheet Metal Testing Machine

The SMTC 100 Sheet Metal Testing Machine is a cutting-edge solution for evaluating the ductility and forming characteristics of sheet metals, adhering to international standards such as DIN EN ISO 20482 and DIN EN 1669. This robust machine is essential for testing the influence of surface treatments, coatings, and lubricants, as well as analyzing tool and process parameters for forming applications like cupping and earing tests.

Applications:

• Testing sheet metal ductility to established standards.
• Evaluating the effects of surface treatments, coatings, and lubricants on forming.
• Investigating the impact of tools and process parameters on forming performance.

Advantages and Features:

• Quick Tool Changes: Easy replacement of tools such as punches, drawing dies, spacers, cutting punches, rings, and scrapers.
• Precision and Repeatability: Low piston/cylinder friction ensures accurate and consistent results.
• Quiet and Clean Operation: Designed for noise reduction and minimal mess.
• Compact and Portable: Easy to transport and install.
• Optimized Viewing: Swivel-mounted electronic screen with ergonomic controls.
• Safety Features: Hydraulic and electronic safeguards for all operations.
• Automatic Functionality: Auto piston retraction and shutdown upon crack detection or test completion.
• Advanced Data Recording: Logs parameters like pressing speed, distance, blasting power, Fmax, and force values.
• Customizable Recipes: Stores and recalls up to 1000 test parameters for efficient testing and reporting.
• Ergonomic Design: Easy-to-change box panels and conveniently placed controls.
• Custom Solutions: Options for piezo load cells, varying drawing speeds, and separate hydraulic power packs.

Technical Specifications:

• Maximum Ram Force: 100 kN
• Maximum Puncturing and Jam Power: 100 kN
• Specimen Dimensions:
  • Empty (Penetrable): Ø 118 mm
  • Empty (Arable, Max): Ø 165 mm
• Sheet Strip Width (Max): 128 mm
• Sheet Metal Thickness (Max): 6.4 mm
• Load Resolution (Compression and Puncturing): 0.01 kN
• Feedrate:
  • Drilling: 5 mm/s
  • Compacting: 10 mm/s
• Power Requirements: 3 x 220 V, 3-Phase, 50 Hz, 32 A
• Power Consumption: 10 kVA
• Dimensions:
  • Overall: 865 x 1825 x 1415 mm
  • C/E1/E2: 985/550/690 mm

This versatile and user-friendly machine is ideal for industrial laboratories seeking reliable, repeatable results.
